Controlling Light-Shadow Color Transitions

MooaToon uses Ramp Map to represent the color transition from light to shadow:

Default Ramp + Single Light Binarization Shadow Transition
3Levels Ramp + Single Light Shadow Transition now has 3 color levels
3Levels Ramp + Multiple Lights

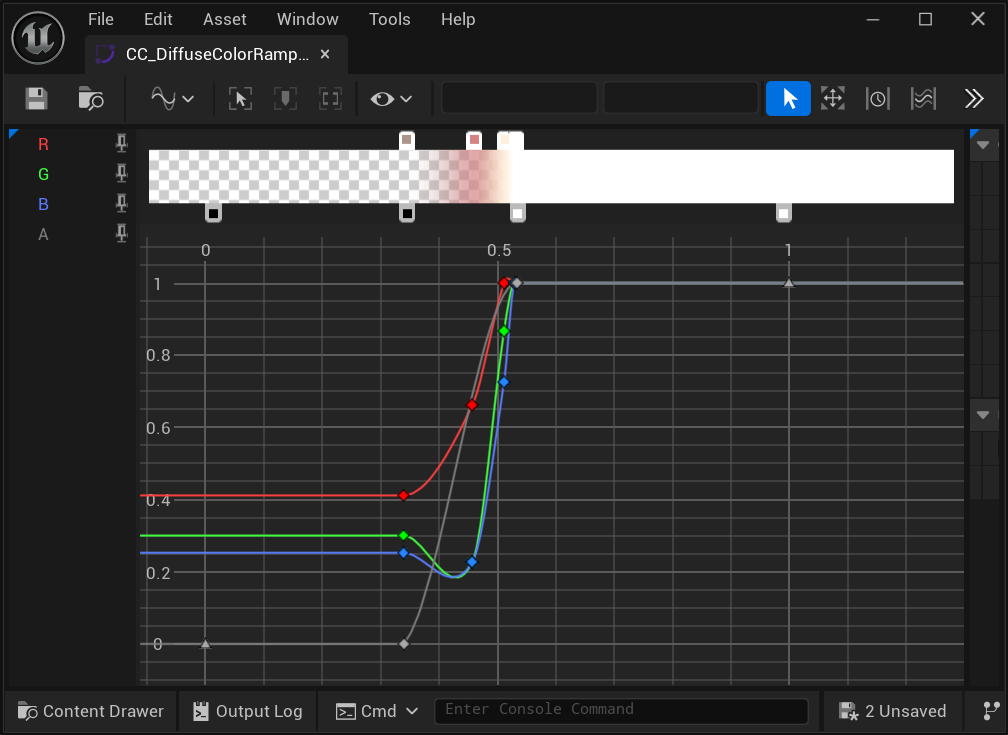

Ramp is a 1D lookup table (LUT), which stores user-defined Curves, represented as Color Curves in UE:

By vertically arranging multiple Color Curves, a Curve Atlas texture can be created, with each Color Curve occupying one row of pixels:

Starting from MooaToon 5.4, use Global Diffuse Color Ramp and Global Specular Color Ramp, by placing all Ramps in an Atlas, and specifying which Ramp to use in each material, achieving Multi-Light Ramp Lighting.

Choose Which Ramp to Use

First find Global Diffuse Color Ramp Atlas in Project Settings to browse all available Ramps:
Project Settings > Engine > MooaToon > Global Diffuse Color Ramp Atlas.

Then remember the index of the Ramp you want to use, for example, the index of CC_DiffuseColorRamp_012_3Levels2 is 12, then fill in the index into the Diffuse Color Ramp Index of the Toon material:

Add New Ramps and Ramp Atlas

To avoid file conflicts, please do not directly modify the built-in Ramps or Ramp Atlas of MooaToon. Instead, directly add new Ramps and Ramp Atlas.

First, duplicate the current Global Diffuse Color Ramp (default is MooaToon-Project/Plugins/MooaToon/Content/Assets/DiffuseColorRamps/CA_GlobalDiffuseColorRampAtlas), then to your own directory.

Then set the duplicated RampAtlas file to Global Diffuse Color Ramp Atlas.

Now you can edit your own Ramp Atlas, you can directly create new Color Curves or copy built-in Ramps, then add them to the Ramp Atlas.

Detailed Explanation of Diffuse Color Ramp Channels

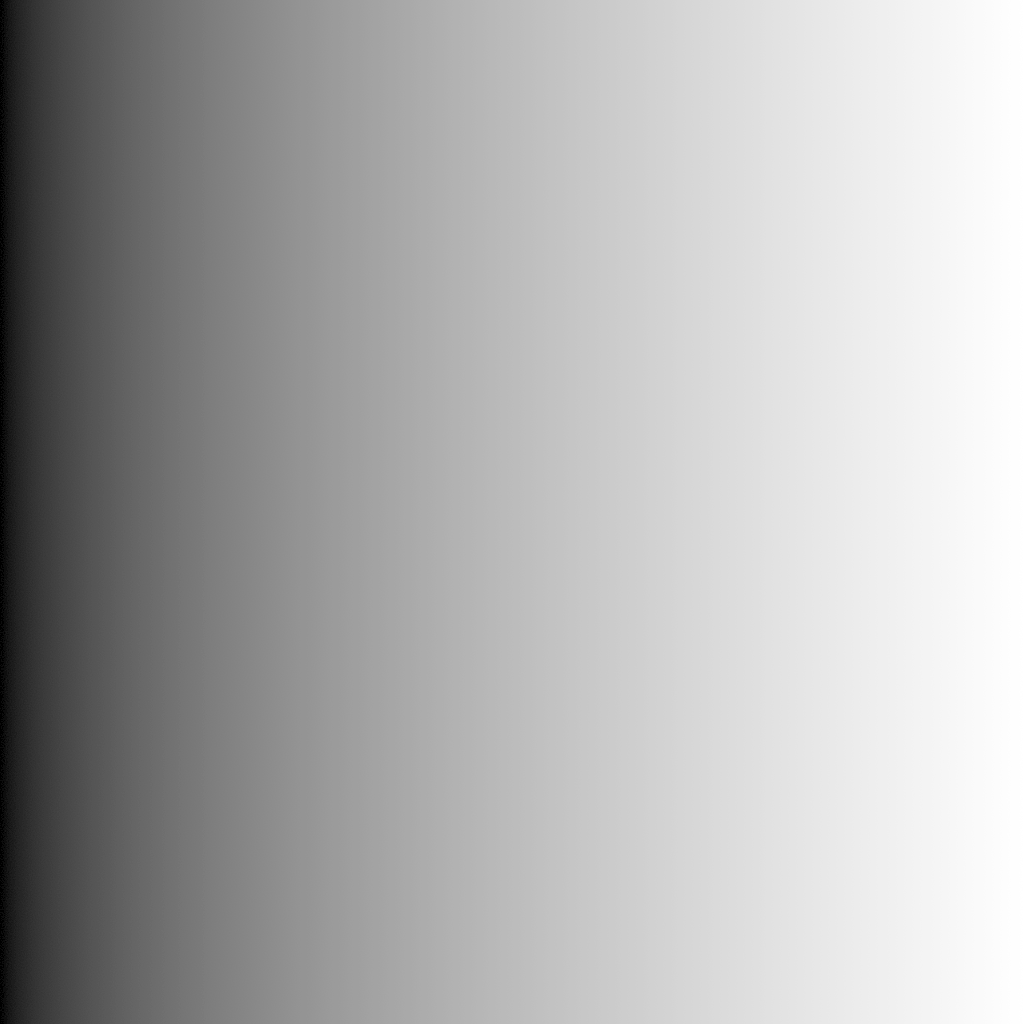

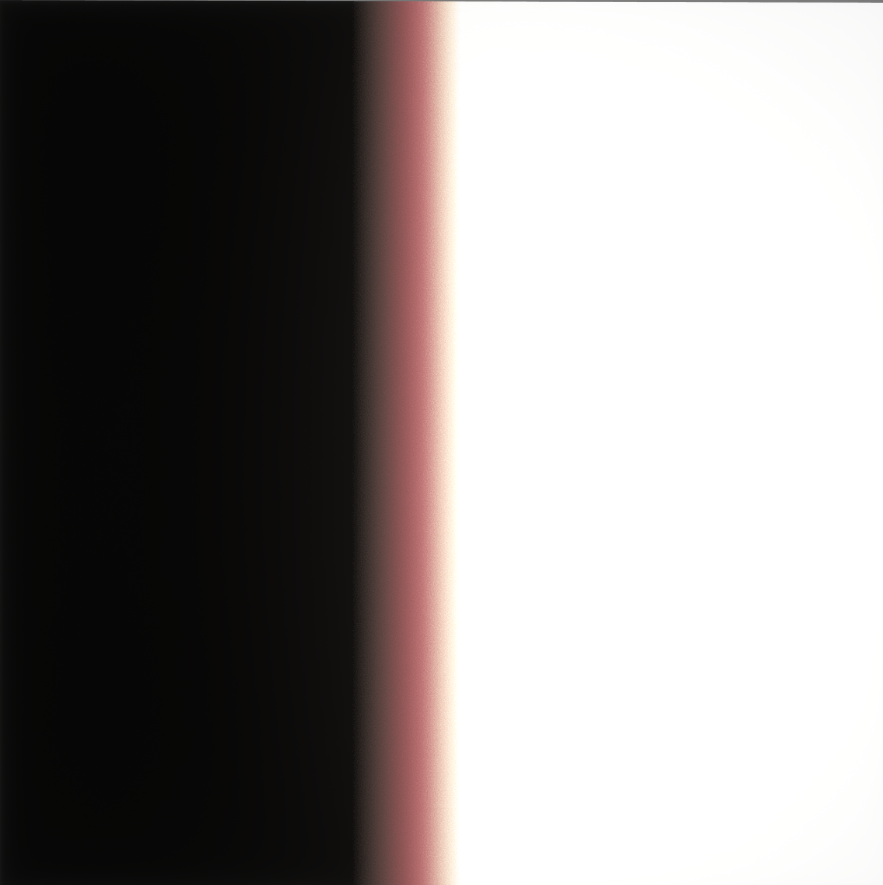

PBR Lambertian Diffuse	Binary Ramp Lighting	3 Levels Ramp Lighting	Skin Ramp Lighting

The horizontal axis of the Diffuse Color Ramp represents the angle between the normal direction and the light direction (N dot L, abbreviated as NoL), where 0 is the backlit side and 1 is the frontlit side.

The Diffuse Color Offset input of the Toon Material is used to offset the light-dark boundary (NoL + DiffuseColorOffset), while AO is used to create fixed-position shadows (min(NoL, AO)).

The value of the RGB channel is Diffuse Color.
The A channel is used to distinguish between light and dark areas, which means blending Base Color and Shadow Color, where 1 represents light (Base Color) and 0 represents dark (Shadow Color).

info

The final calculation order of Diffuse color is represented in pseudo code as follows:

1. DiffuseColorRampU = min(NoL + DiffuseColorRampUVOffset, AO, Shadow/*Ray Tracing Shadows / Virtual Shadow Maps / Hair Shadows*/)
2. DiffuseColorRamp  = Sample GlobalDiffuseColorRampAtlas by DiffuseColorRampU
3. DiffuseColor      = Blend ShadowColor and BaseColor with DiffuseColorRamp.a
4. Output            = DiffuseColor * DiffuseColorRamp.rgb * Light Color

More examples are as follows:

	+		=
Ramp A: Binarized at 0.5		Modify Base Color and Shadow Color		Binarization of 2 colors
	+		=
Ramp A: Slow transition from 1 to 0		Modify Base Color and Shadow Color		Slow transition of 2 colors
	+		=
Ramp RGB: Gradient of 3 colors Ramp A: Slow transition from 1 to 0		Base Color = Shadow Color		Gradient of 3 colors
	+		=
Ramp A: Gradient of 4 color levels		Modify Shadow Color		Staggered gradient of 2 colors
	+		=
Ramp RGB: Gradient of 3 colors Ramp A: Gradient of 4 color levels		Base Color = Shadow Color		Staggered gradient of 3 colors
			=
Ramp remains unchanged		Modify Shadow Color		Staggered gradient of 3 colors in multiply blending mode with Shadow Color
			=
Sample Noise Map				Noise Map sampling result
	+		=
Ramp A: Gradient of 4 color levels		Noise Map as Diffuse Ramp Offset		Diffuse Ramp A channel is offset, Meaning the position of the light-shadow boundary is offset
			=
Ramp remains unchanged		Noise Map as AO		- Areas where Noise is less than 1 gradually transition to shadows, - No offset at the light-shadow boundary, - Can create soft shadow transitions
